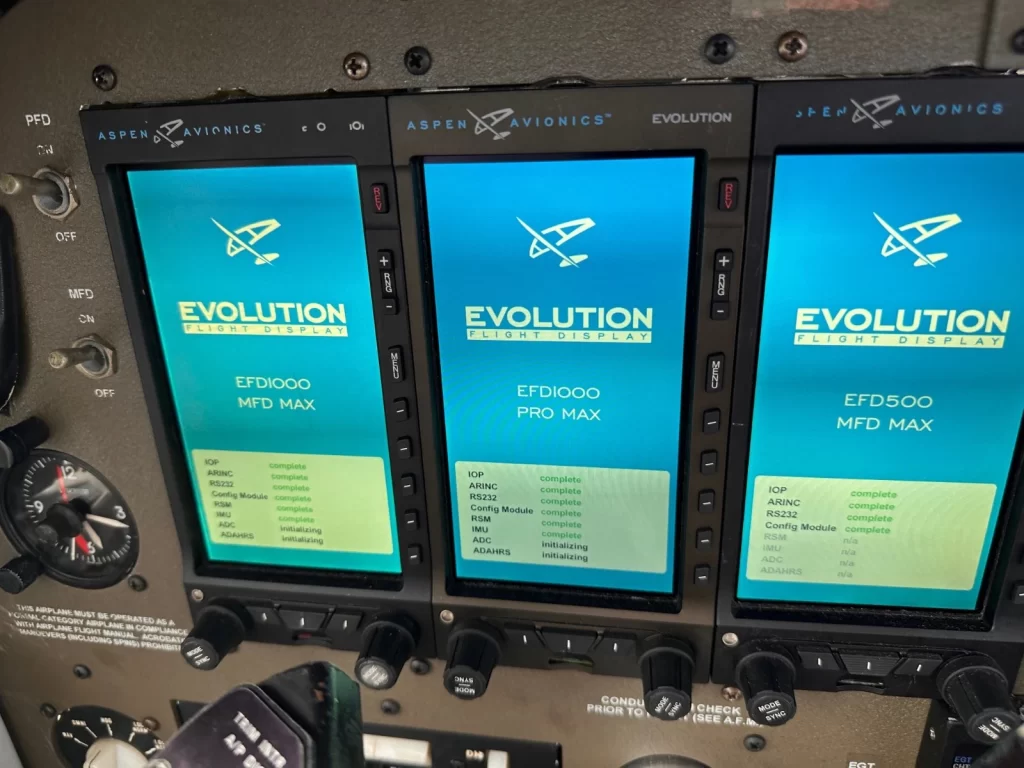

ASPEN EVOLUTION EFD 2500 MAX
The Evolution 2500 MAX Package combines the powerful Pro MAX Primary Flight Display (PFD), the MFD1000 MAX Multi-function Flight Display (MFD), and the MFD500 MAX MFD to deliver Aspen’s total glass cockpit solution.
The Pro MAX PFD and MFD1000 MAX provide the safety and confidence of PFD redundancy. If your PFD fails, simply press the REV button on the MFD1000 MAX and it becomes the PFD – converting into an identical backup right in your primary instrument scan. This PFD backup means less stress and potential confusion in a pressure situation. The MFD500 MAX expands display area to put more flight data exactly where and the way you want it. No other GA glass cockpit system gives you this level of redundancy and confidence at any price.
Aspen makes the total glass cockpit experience both easy-to-use and affordable with patented retrofit technology and superior compatibility for substantially lower installation costs and total cost of ownership.
Evolution 2500 MAX Package – your ultimate glass panel.
Evolution 2500 MAX System Features:
Advanced EFIS six-pack replacement
Pro MAX PFD/MFD1000 MAX redundancy backs up all critical sensors and systems
Twice the MFD display area for enhanced situational awareness
Built-in internal extended duration battery and emergency GPS
New, vibrant colors with the latest aviation glass
Higher reliability and faster refresh rates with the latest generation processors
Brilliant, direct sunlight-readable, 6-inch 760×400 TFT active matrix LCD display capable of displaying over million colors (140 pixels/inch)
Photo-quality moving maps and crisp, clear text
Terrain, traffic, maps and weather
ADS-B In weather and traffic1
Audio panel interface
Fully expandable and software upgradable – when new technology becomes available no need for unit replacement
Standard Evolution Synthetic Vision
Works with your existing avionics with the broadest autopilot/flight director integration
Lightest weight with easy system installation
1 with compatible ADS-B transceiver, receiver or transponder
Pro MAX PFD Features:
GPS-aided AHRS in the event of pitot static failure
Font and window enlargement capable
Airspeed and altitude tapes
Altitude alerter (and separate approach minimums alerting)
Full electronic HSI with dual bearing pointers
Base map with flight plan legs and waypoints, curved flight paths, and nearby navaids
Built-in GPS steering
Display of real-time winds aloft, OAT, TAS, and ground speed
Integral Air Data Computer and Attitude Heading Reference System (AHRS)
MFD1000 MAX Features:
Duplicate sensor set providing PFD redundancy on MFD if PFD fails
Allows removal of redundant mechanical backup instruments
Secondary HSI
Chart and countdown timers
Height above ground level (AGL) on navigation and terrain maps
METAR flags on navigation map
High resolution moving maps with hazard display overlays
ADS-B traffic and weather
Customizable screen layouts
Font enlargement
Charts and geo-referenced airport diagrams
MFD 500 MAX Features:
Chart and countdown timers
Height above ground level (AGL) on navigation and terrain maps
METAR flags on navigation map
High resolution moving maps with hazard display overlays
ADS-B traffic and weather
Customizable screen layouts
Font enlargement
Charts and geo-referenced airport diagrams
This sale includes:
- EFD 1000 PFD MAX WITH INTERNAL BATTERY
PN 910-0001-021 REV B
S/N 32155
- EFD 1000 MFD MAX (EXTERNAL BATTERY)
PN 910-00001-012 REV. ?
S/N 9710401
THIS UNIT DOES HAVE A SCRATCH ON THE LENS BUT IT DOES NOT EFFECT THE PERFORMANCE OF THIS UNIT
- EFD 500 MFD MAX WITH BUILT IN BATTERY
PN 910-00001-013 REV. ?
S/N 2704
- CONFIGURATION MODULE
EFD 1000 PRO
PN 910-00005-004
SYSTEM PN 920-00004-002
S/N 13143
- CONFIGURATION MODULE
EFD 1000 MFD
PN 910-00005-004
SYSTEM PN 920-00004-004
S/N 19127
- CONFIGURATION MODULE
EFD 500
PN 910-00005-004
SYSTEM PN 920-00004-005
S/N 13085
- ANALOG CONVERTER UNIT
PN 910-00004-001
S/N 16070
- REMOTE SENSOR MODULE
P/N 910-00003-011
S/N 207331
- REMOTE SENSOR MODULE WITHOUT GPS
PN 910-00003-002
S/N 600169
- EMERGENCY BACK UP BATTERY(EBB-58)
PN 413-00002-001
BATTERY MOUNTING TRAY
PN 403-00005-001
- INDICATOR DOUBLER QTY 3
- CONNECTORS
- PITOT/STATIC FITTINGS QTY 4
THIS SYSTEM LOOKS GREAT AND WOULD MAKE AN EXCELLENT ADDITION TO ANY AIRCRAFT
