CERTIFIED DYNON SKYVIEW SV-HDX1100 TOUCH SCREEN MFD WITH COM & TRANSPONDER
THIS SALE IS FOR A CERTIFIED DYNON SKYVIEW HDX 1100 AVIONICS SUITE INCLUDING:
SKYVIEW SYSTEM
SV XPNDR 261 ADSB OUT TRANSPONDER
SV COM T8 WITH CONTROL HEAD
D10A WITH BATTERY BACK UP
ENGINE MONITOR
& MORE
EVERYTHING YOU NEED IN 1 BUNDLE!
AS USUAL WENTWORTH AIRCRAFT HAS THE NEWEST AND GREATEST EQUIPMENT FIRST !!!!
SkyView HDX features improved displays, beautiful design, unrivaled control ergonomics, and an upgraded touch interface. SkyView HDX displays are compatible with all existing SkyView components and feature identical mounting profiles and electrical connections.
Clear, Vibrant Displays:
SkyView HDX features brighter, higher-resolution HD touchscreen displays with wider viewing angles and improved anti-reflective properties for the sharpest picture ever.
Beautiful Design:
SkyView HDX’s modern, elegant design features robust metal and glass construction that is worthy of being in your aircraft.
Unrivaled Control Ergonomics:
SkyView HDX expands the SkyView philosophy of combining full physical controls with a touchscreen. SkyView HDX’s angled control panel allows for natural hand positioning, reducing fatigue. The wide, sculpted ledge allows you to anchor your hand for precise control in turbulence. New knobs have positive and crisp movement, and all controls are now fully-backlit for night flight.
Improved Touch Interface:
SkyView HDX features icon-driven touch controls and simplified screen navigation for reduced workload. The new engine monitor instrument band along the bottom of the screen affords an ideal instrument scan. The expansive glass display features edge-to-edge touchability with no bezel in the way.
Capable and Compatible:
SkyView HDX utilizes the same components and modules as existing SkyView systems. It also features the same mounting footprint and wiring as other SkyView displays, allowing drop-in upgrades for pilots already flying behind SkyView. SkyView HDX displays can also work side-by-side with SkyView Touch and SkyView Classic displays.

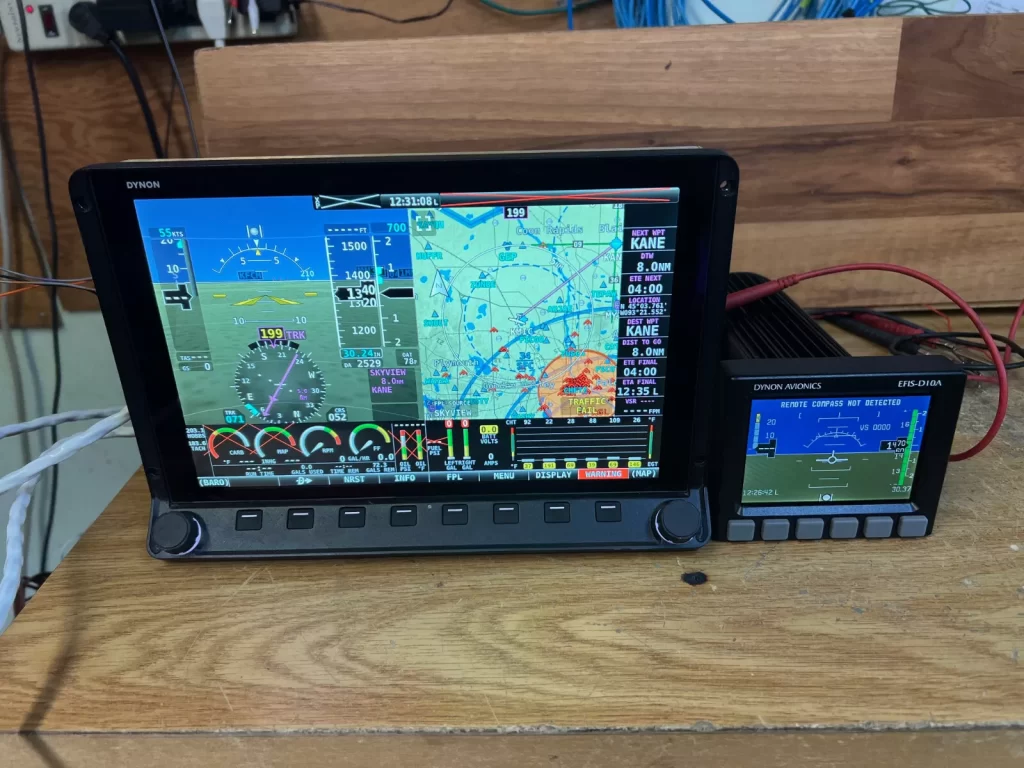

SV-HDX1100 10″ Skyview
- Dimensions:
- 10.31″ Wide
- 7.1″ High
- 3.1″ Deep
- Resolution:
- High Definition Touch Screen
- 800 Pixels High
- 1280 Pixels Wide
FEATURES:
- 10” DISPLAY
- PFD
- Synthetic Vision
- Moving Map
- Terrain
- Engine Monitor
- Autopilot
- Radio / Transponder Interface
- LRU (Line Replaceable Unit)
- Architecture
- Redundant, Simplified Wiring
- Very Bright High-Resolution
- Screens, 1350 and 1200 Nits
- Dual Joystick Knobs
SV XPNDR 261 ADSB OUT TRANSPONDER FEATURES:
- Certified for IFR / VFR flight
- Certified class 1 transponder 250 watts nominal output
- Low weight – 440g (0.8 lbs)
- Low power consumption
- 1090ES ADS-B Out capable
- EASA ETSO and FAA TSO Certification – includes TSO C166b the latest ADS-B standard
SV COM T8 COM WITH CONTROLLER FEATURES:
- Compact size, low weight – takes minimal panel space, only 74mm deep.
- 8.33 and 25 kHz channel spacing
- Dual watch – monitor two frequencies at the same time
- Unique ‘Push Step’ feature provides the fastest frequency selection
- Low power consumption
- 6 Watts nominal output
- Simple installation
ITEMS INCLUDED IN THIS SALE:
HDX 1100 system including:
SV-HDX 1100 display pn 503273-000 sn 23333
WIFI ADAPTER
SV-ADAHRS 200 pn 503282-000 sn 16083
SV-GPS 2020 antenna pn 503286-000 sn 5693
Sv-BAT 320 pn 503294-000 sn 30746
SV-OAT 340 pn 503291-000 sn 110621
SV-ADSB 472 pn 503373-000 sn 1823 with connector
SV MAG 236 pn 503370-000 sn 15889 with connector
SV KNOB PANEL/V pn 503468-000 sn 15265
SV NET HUB pn 503786-000 no sn
SV EMS 220 pn 503365-000 sn 25538
EGT PROBE QTY 6
CHT PROBE QTY 6
CHT ADAPTER QTY 6
MANIFOLD PRESSURE TRANSDUCER
OIL PRESSURE TRANSDUCER
OIL TEMP SENDER PN 02037-00
FUEL PRESSURE TRANSDUCER
CARB TEMP SENSER
SHUNT 100A
FUEL FLOW TRANSDUCER PN FT-90(HIGH WING)
EGT/CHT HARNESS
OPTIONS HARNESS
SV ARINC 429 pn 503378-000 sn 11236 with connector
EFIS D10A pn 503296-000 sn 12708 with battery back up & connector
MAIN CONNECTOR
6 NETWORK CABLES
MISC PAPERWORK FROM ORIGINAL INSTALL
SV 261 TRANSPONDER INCLUDING:
SV XPNDR 261 RT UNIT TRIG PN 00745-00-03
MOUNTING TRAY
CONNECTOR
SV COM T8 COM WITH CONTROLLER INCLUDING:
SV COM T8(TRIG TY91L) TRIG PN 01192-00-03 RT UNIT sn
MOUNTING TRAY
SV-COM PANEL PN 503456-000 SN 15310
HARNESS BETWEEN RT UNIT AND CONTROL PANEL
THIS SYSTEM WAS REMOVED FROM A 1963 182H N#2388X
THIS SYSTEM LOOKS GREAT AND WOULD MAKE AN EXCELLENT ADDITION TO ANY CERTIFIED AIRCRAFT
