DYNON D-1000( LEGACY )SKYVIEW SYSTEM
WITH SYNTHETIC VISION 10″ SCREEN
IF YOU ARE LOOKING FOR A SOLID , RELIABLE, UNIT AND DON’T REALLY NEED OR WANT A TOUCH SCREEN SYSTEM
THIS MAY BE JUST WHAT THE DR. ORDERED
THIS SALE INCLUDES

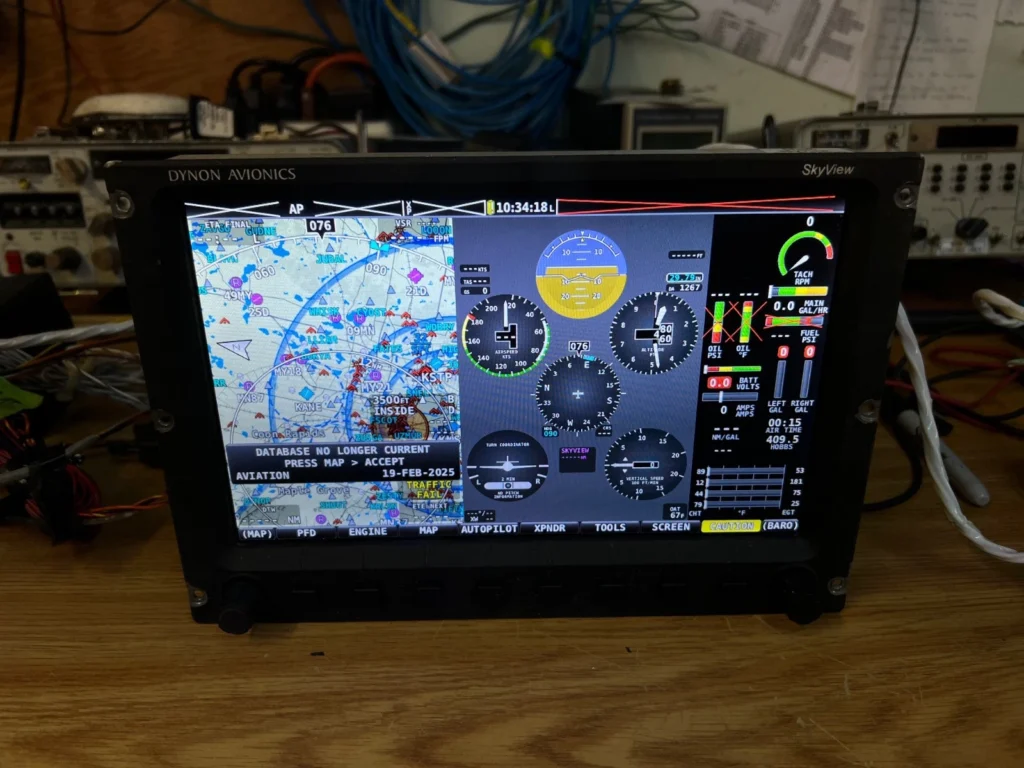

- HUGE 10″ DISPLAY PN SV-D1000 WITH WIFI ADAPTER
VERY BRIGHT , HIGH RESOLUTION, LCD SCREEN FOR GREAT VISIBILITY EVEN IN DIRECT SUNLIGHT
THE DISPLAY IS THE HEART OF THE SYSTEM …CONTAINING THE TERRAIN DATABASE, MAIN CONTROL,& GRAPHICS PROCESSOR
DESIGNED FOR EASE OF USE MOST FUNCTIONS ARE ACCESSED BY THE ROTARY JOYSTICKS & NOTHING IS MORE THAN 3 BUTTON PUSHES AWAY
- ADAHRS P/N SV-ADAHRS-200 WITH OAT PROBE
ADHARS STANDS FOR AIRDATA/ALTITUDE/HEADING/REFERENCE SYSTEM…
THIS MEASURES INERTIA MAGNETIC HEADING & AIRDATA
THESE PROVIDE THE NECESSARY DATA TO DRIVE THE FLIGHT INSTRUMENTS
- ATTITUDE
- AIRSPEED
- ALTITUDE
- VERTICAL SPEED
- SLIP
- TURN RATE
- GYRO STABILIZATION HEADING
- OUTSIDE AIR TEMP
- SV GPS 2020 GPS RECEIVER/ANTENNA
HAS GPS RECEIVER BUILT INTO THE ANTENNA ALLOWING FOR EASIER INSTALL
WAAS ENABLED
GETS ITS POWER FROM THE DISPLAY BACKUP BATTERY …SO IF THE AIRCRAFT LOOSES POWER YOUR GPS STILL WORKS
- BACK UP BATTERY P/N SV-BAT-320
WILL PROVIDE OVER AN HOUR OF POWER TO DISPLAY AND MODULES
- ENGINE MONITOR MODULE…P/N..SV-EMS-220
- EGT/CHT HARNESS
- OPTIONS HARNESS
- FUEL FLOW TRANSDUCER FT 60
- 2 PRESSURE TRANSDUCERS
- SHUNT
PROVIDES INTERFACE BETWEEN DISPLAY AND AIRCRAFT ENGINE SENSORS, ANY PERIMETERS FALLING OUTSIDE PREDEFINED LIMITS ARE AUTOMATICALLY BROUGHT TO THE ATTENTION OF THE PILOT
- SV-XPNDR 261 (TRIG TT22) ADSB OUT TRANSPONDER WITH MOUNTING TRAY
- SV ADSB 472 RECEIVER
- SV COM 425 VHF COM RECEIVER
- SV COM PANEL(VERTICAL)
- SV NETWORK HUB
- SV INTERCOM 2S
- SV 32L SERVO (CONNECTOR CUT)
- SV 32 SERVO (CONNECTOR CUT)
- SV AUTOPILOT PANEL (VERTICAL)
- MISC CONNECTORS, HARNESSES, NET WORK CABLES
THIS SYSTEM WAS REMOVED FROM
2018 RV6 WITH 0320E3D ENGINE
THIS SYSTEM LOOKS AND WORKS GREAT
IF YOU ARE LOOKING TO ADD A GLASS PANEL TO YOUR EXPERIMENTAL OR LIGHT SPORT THIS IS THE SYSTEM FOR YOU
