UAVIONIX AV30C & TAILBEACON X SYSTEM
THIS IS THE SYSTEM YOU HAVE BEEN LOOKING FOR !!!!!!!
AS USUAL WENTWORTH AIRCRAFT HAS THE NEWEST AND BEST EQUIPMENT FIRST !!!!
THIS SALE IS FOR AN UAVIONIX AV30C AND TAILBEACON X ADS-B OUT TRANSPONDER AND EFIS SYSTEM
SOME OF THE FEATURES OF THE TAILBEACON X INCLUDE:
The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.
- Mode S ADS-B OUT Transponder
- Mode S + ADS-B OUT Transponder meets airspace requirements worldwide.
- Integrated Certified GPS Receiver
- tailBeaconX includes a certified SBAS GPS receiver and antenna. No additional GPS is required.
- Aireon Compatible
- The tailBeaconX with integrated dipole antenna is specifically designed to maximize performance when tracked by the Aireon space-based ADS-B satellite constellation.
- LED Lighting
- The integrated 20,000 hour rated LED position light ensures the tailBeaconX draws less power than your old incandescent bulb.
tailBeaconX is the world’s first transponder designed as a rear position light replacement. The 1090MHz Mode S ADS-B OUT transponder satisfies the requirements for all existing and inevitable ADS-B regulations worldwide, especially those leveraging space-based ADS-B. Fly knowing no matter your destination, tailBeaconX will keep your aircraft connected.
tailBeaconX mounts in place of your existing rear position light. The GPS, space-based, and ground-based antennas are integrated in to the lens housing. No new holes or penetration of pressure vessels are required making tailBeaconX the lowest-hassle easiest install period.
SOME OF THE FEATURES OF THE AV30C INCLUDE:
- 12-In-1 Functionality:
- Primary Attitude
- Primary Slip
- Primary Direction Indication
- Indicated Airspeed (KTS / MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter
- Bus Voltage
- GPS Navigational Data Overlay
- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, & Layout
- Audio Alerts (AOA, G, Roll Limits)
Retro-Fit” Your Cockpit with a Digital Upgrade.
Upgrade your legacy vacuum-driven instrument to digital precision attitude
- Keep Your Panel and Upgrade Your View
- AV-30-C blends into your existing panel seamlessly. By mounting from behind, it preserves the original look and eliminates the need for cutting or replacing your panel.
THIS SALES INCLUDES THE FOLLOWING COMPONENTS:
- AV 30C PANEL UNIT PN UAV-1003429-002
- TAILBEACON X PN 1003648-001
- MOUNTING RING
- GASKET
- SCREWS QTY 2
- CONNECTORS
- PASSWORD FOR TAILBEACON X

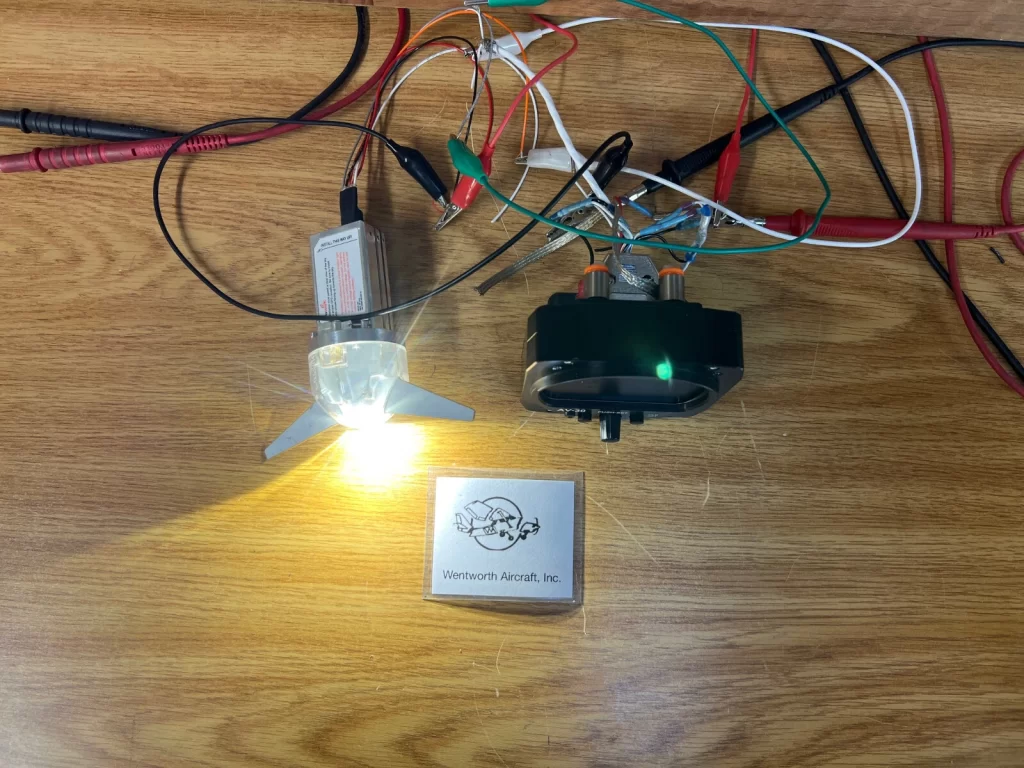

THIS SYSTEM WAS REMOVED FROM A 1978 Mooney M20J
THIS SYSTEM LOOKS GREAT AND WOULD MAKE AN EXCELLENT ADDITION TO ANY AIRCRAFT
